Create a New NPC Interactable Component

Overview

An NPC interaction in MIP consists of four parts working together:

• A C++ interactable component implementing IMIPInteractableComponentInterface
• An Interaction Listener Object (Blueprint) mapping interaction tags to temp-state tags
• An Interaction Definition Asset holding the unique interaction tag, icon, and display name
• Wiring in the Player Controller to bind component → listener

---

Step 1: Create the C++ Interactable Component

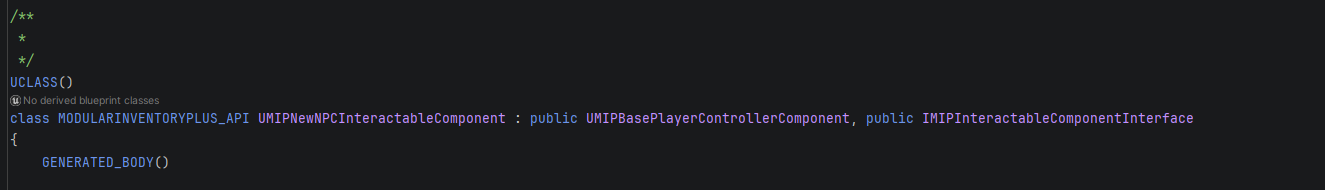

Create a new C++ class, derive from UMIPBasePlayerControllerComponent (or any UActorComponent), and implement IMIPInteractableComponentInterface.

public IMIPInteractableComponentInterface

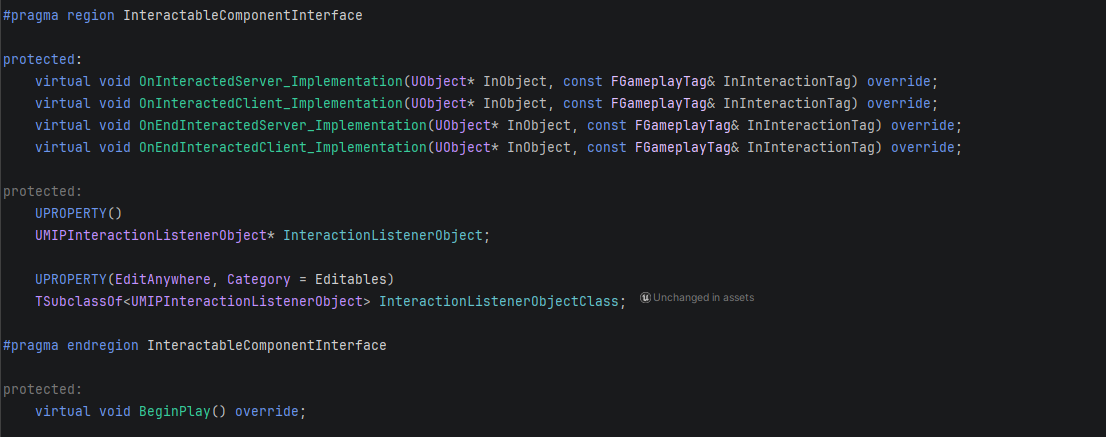

Add the required interface overrides and the listener object properties:

#pragma region InteractableComponentInterface

protected:
    virtual void OnInteractedServer_Implementation(UObject* InObject, const FGameplayTag& InInteractionTag) override;
    virtual void OnInteractedClient_Implementation(UObject* InObject, const FGameplayTag& InInteractionTag) override;
    virtual void OnEndInteractedServer_Implementation(UObject* InObject, const FGameplayTag& InInteractionTag) override;
    virtual void OnEndInteractedClient_Implementation(UObject* InObject, const FGameplayTag& InInteractionTag) override;

protected:
    UPROPERTY()
    UMIPInteractionListenerObject* InteractionListenerObject;

    UPROPERTY(EditAnywhere, Category = Editables)
    TSubclassOf<UMIPInteractionListenerObject> InteractionListenerObjectClass;

#pragma endregion InteractableComponentInterface

---

Step 2: Initialize the Interaction Listener on BeginPlay

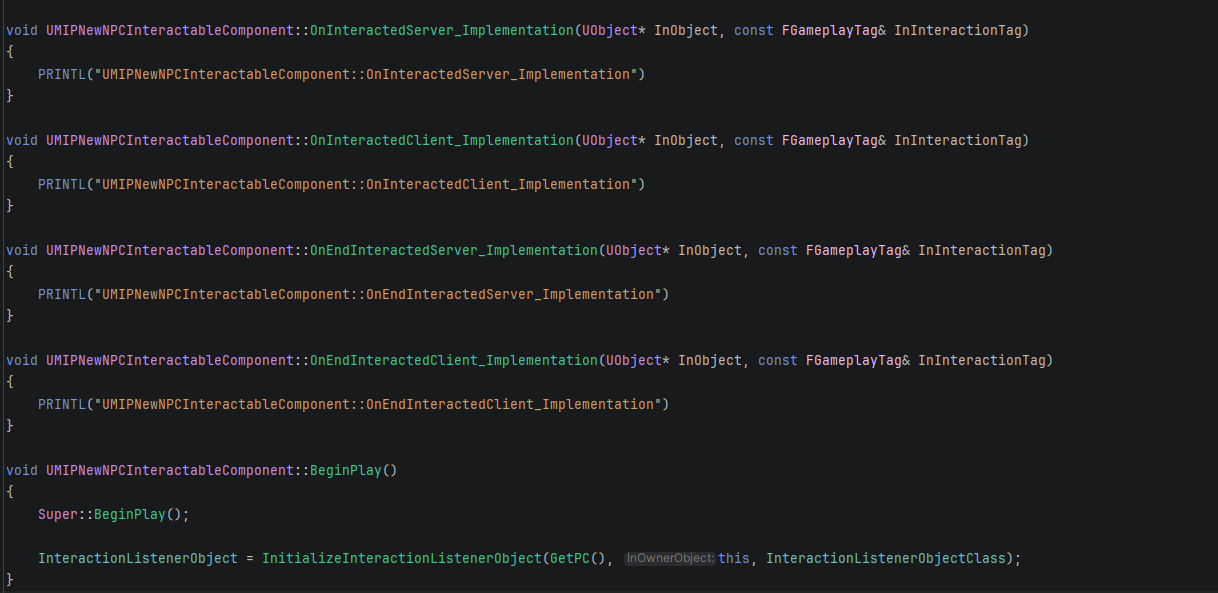

Call InitializeInteractionListenerObject in BeginPlay so the component can listen and validate interaction events.

void UMIPNewNPCInteractableComponent::BeginPlay()
{
    Super::BeginPlay();

    InteractionListenerObject = InitializeInteractionListenerObject(GetPC(), this, InteractionListenerObjectClass);
}

Warning

If InteractionListenerObject is not initialized here, the interaction system will not work.

---

Step 3: Add the Component to the Player Controller

Option A — Blueprint

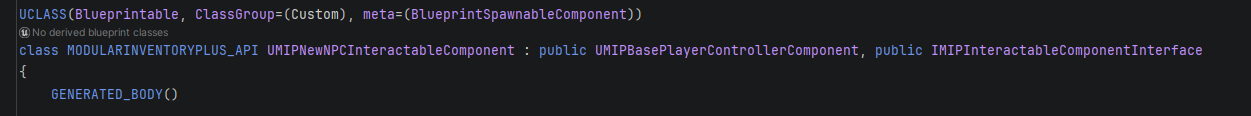

Add Blueprintable to the component's UCLASS macro:

UCLASS(Blueprintable, ClassGroup=(Custom), meta=(BlueprintSpawnableComponent))

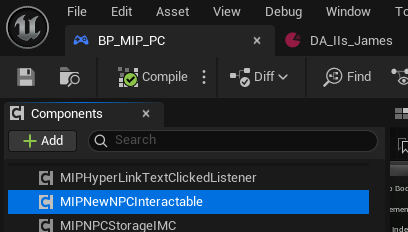

Compile, then open BP_MIP_PC and add the new component.

Option B — C++

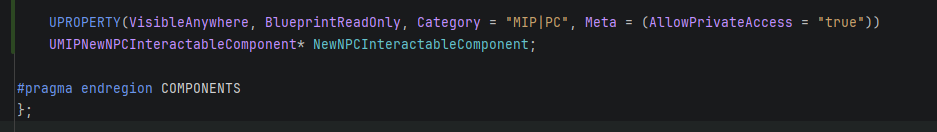

Declare the component in AMIPBasePlayerController inside the COMPONENTS region:

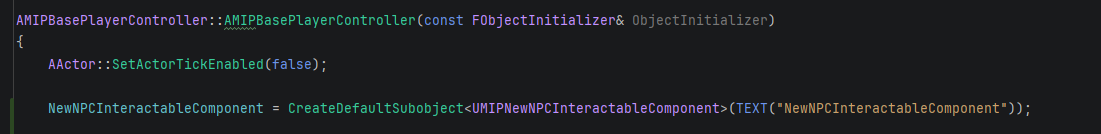

Then CreateDefaultSubobject in the constructor:

---

Step 4: Create an Interaction Definition Asset

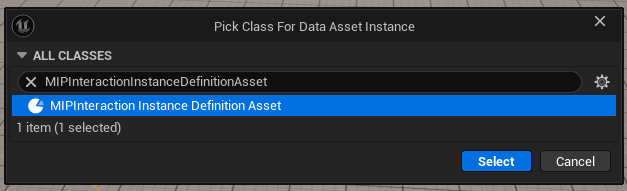

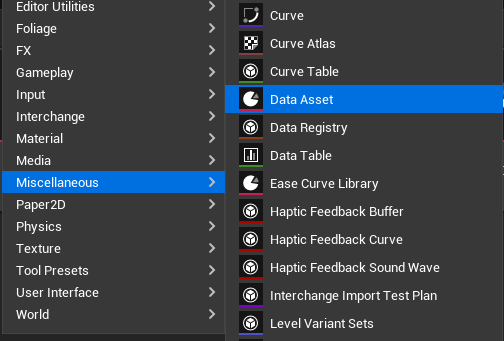

Create a new MIPInteractionInstanceDefinitionAsset in the Content Browser.

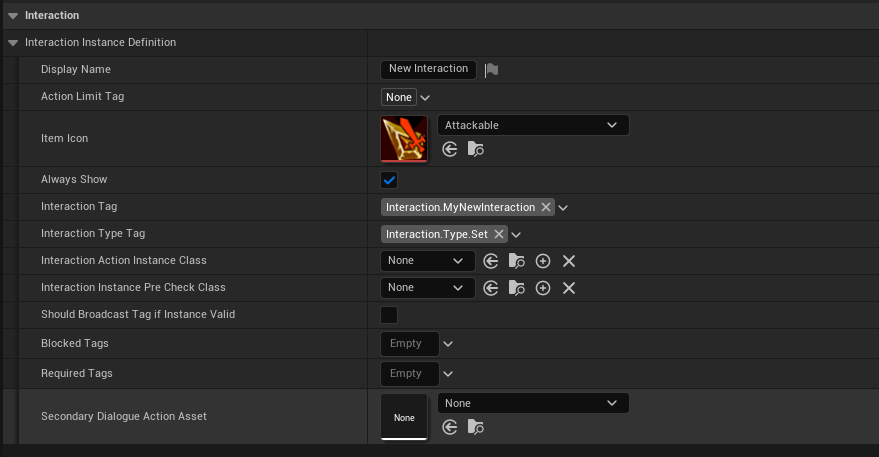

Configure the asset:

Field	Description
DisplayName	Human-readable name shown in the interaction widget
ItemIcon	Icon displayed for this interaction
AlwaysShow	Whether the interaction shows without needing proximity range
InteractionTag	Unique gameplay tag for this interaction type (e.g. Interaction.MyNewInteraction)

---

Step 5: Create an Interaction Listener Blueprint

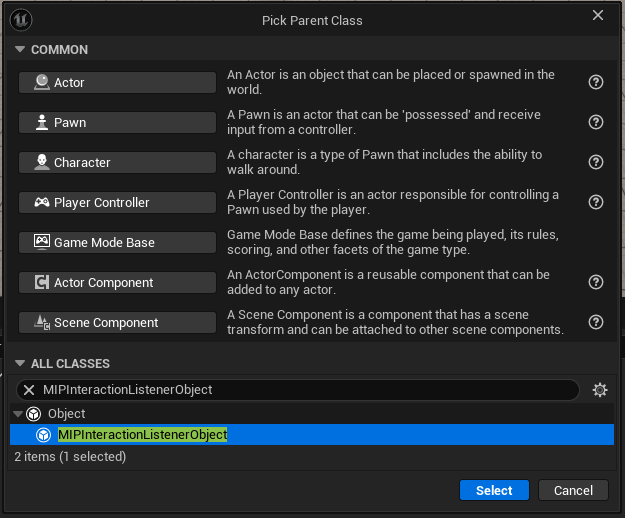

Create a Blueprint class in /ModularInventoryPlus/InteractionListeners/ derived from MIPInteractionListenerObject.

In Class Defaults, configure InteractionAndTempTagMap:

Key	Value
Interaction.MyNewInteraction	Player.TempState.MyNewTempState

Anti-Cheat

The server checks the mapped TempState tag before allowing the interaction to proceed. Always assign a unique temp-state tag per interaction type.

---

Step 6: Assign the Listener in the Player Controller

Open BP_MIP_PC, find the new interactable component, and set its InteractionListenerObjectClass to the Blueprint listener created in Step 5.

---

Step 7: Assign to the InteractionInstancesDefinitionAsset

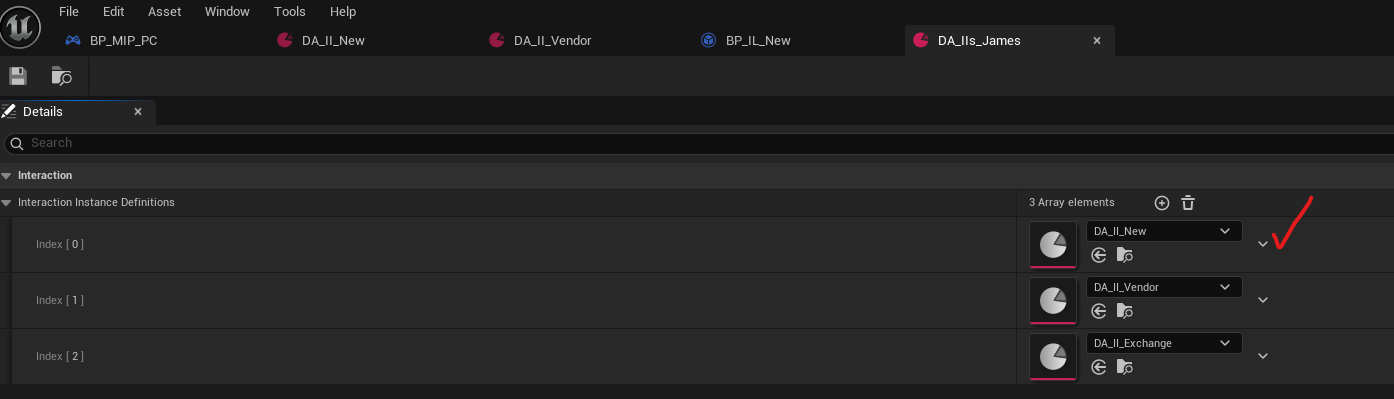

Create (or open) a MIPInteractionInstancesDefinitionAsset (not to be confused with MIPInteractionInstanceDefinitionAsset) and add the definition asset from Step 4 to its list.

Warning

Make sure you use MIPInteractionInstancesDefinitionAsset (plural) — the container asset — not the single-definition asset.

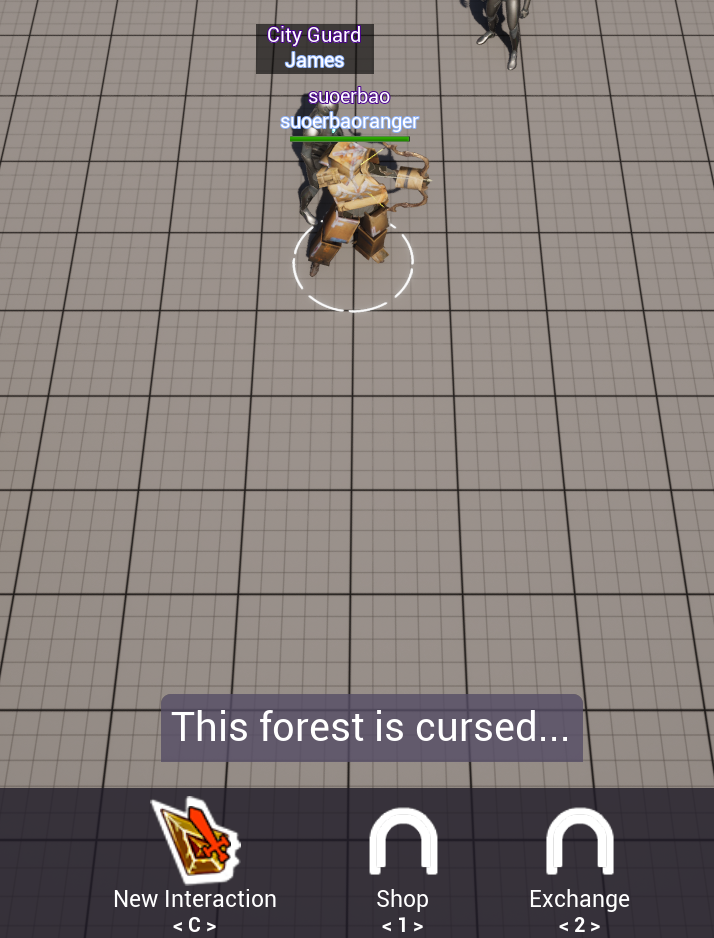

When visiting an NPC that uses this asset, the new interaction will appear in the dialog widget:

Interacting will print the confirmation log:

---

Step 8: Show Toggle Widgets on Interaction (Project Settings)

When a player interacts with the NPC using your interaction tag, MIP can automatically show and hide toggleable widgets (e.g. an inventory panel, a feature panel). This is driven by InteractionTagAndWidgetTags in the MIP Project Settings — no code required.

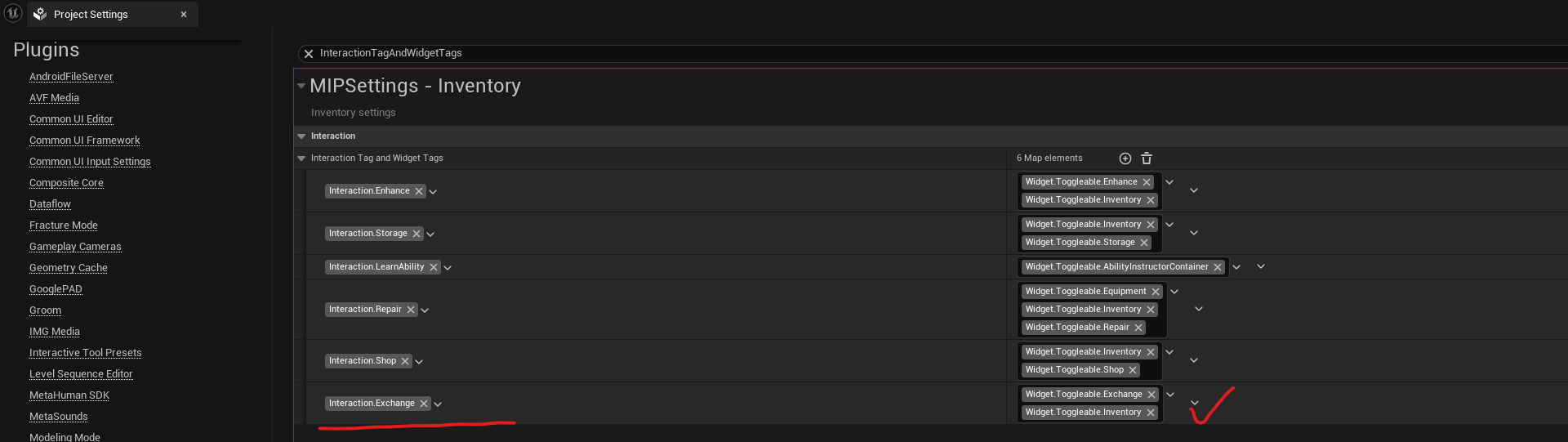

How to configure it:

1. Open Edit → Project Settings
2. In the search box type InteractionTagAndWidgetTags
3. Under the MIP settings category, find the InteractionTagAndWidgetTags map
4. Click + to add a new entry:

Field	Value
Key	Your interaction tag — e.g. Interaction.Seal
Value	One or more Widget.Toggleable.* tags — e.g. Widget.Toggleable.Seal, Widget.Toggleable.Inventory

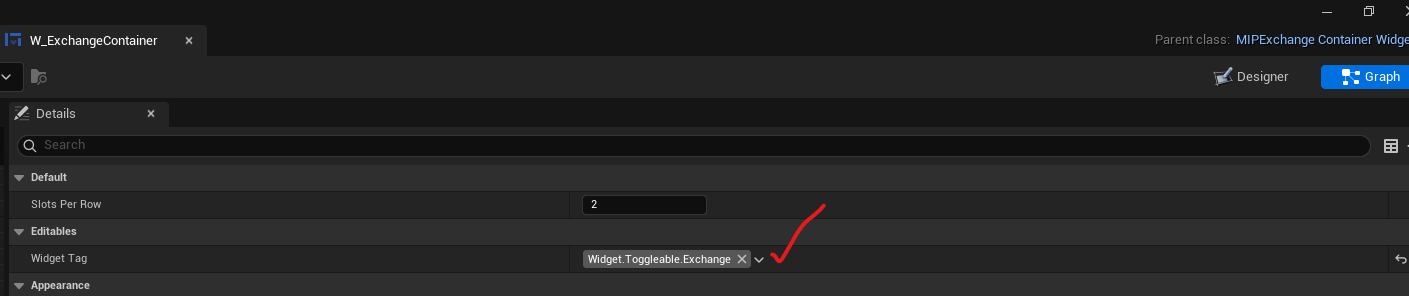

When the player interacts with an NPC that has your interaction tag, every widget whose tag appears in the value container will be shown automatically. When the interaction ends, they are hidden again.

Info

InteractionTagAndWidgetTags is defined in MIPSettings (Setting/MIPSettings.h). The key filter is Interaction.* and the value filter is Widget.Toggleable.*, so the tag picker in the editor will only show valid options for each field.

---

Implementation Example — Server & Client

Below is how UMIPPlayerExchangeManager handles the same pattern as a reference:

• Server (OnInteractedServer): calls GenerateExchangeItem on interact, resets on end-interact.
• Client (OnInteractedClient): calls GenerateExchangeItem for the client and shows/hides widgets.

To control which widgets appear on the client, the built-in implementation calls:

ClientWidgetsManagerComponent->ShowWidgetsOnInteractionWithNPC(InInteractionTag, true);

This reads from InteractionTagAndWidgetTags configured in Project Settings — see Step 8 for setup details.

---
